A/C AIR CON CONDITIONING PUMP COMPRESSOR FOR Volvo INDUSTRIALS & TRUCKS 24 VOLT

Buying a replacement part? Check the part number on your old unit against the cross-reference list in this listing for an exact match. If you cannot find an exact match, contact us before ordering with clear photos of your old unit, including its label, mounting points and electrical connections, or your full vehicle registration. For marine, forklift and machinery parts, send the engine or machine details instead.

A/C AIR CON CONDITIONING PUMP COMPRESSOR FOR Volvo INDUSTRIALS & TRUCKS 24 VOLT

Pulley Belt Type: V-Belt

FITS: Volvo L Series L60E L90E L70E L110E L120E L180E L150E L220E L330E

Seller Warranty: 1 Year

Refrigerant: R134a

Family type: SD7H15

Manufacturer Part Number: 240449

FITS 1: Volvo FL Series FL 10/320 Diesel D10A320

Reference OE/OEM Number: 11104419, 14506862, 14649606, 15082742, 32469, 351119231, 6035, 699471, 8045, 8152, 8243, ACP581, sd7h15-8045, sd7h158045, SD7H158152, SD7H158243, TSP0155827

Brand: HC CARGO

Type: A/C Compressor

Manufacturer Warranty: 1 Year

Compressor Drive Type: Belt Driven

Pulley Groove Quantity: 2

Country of Origin: Netherlands

A/C Compressor/Pump specifics

Family type: SD7H15

Voltage: 24

Grooves: 2

This compressor fits many engines, if your engine or part number is not listed below please message me for an instant response.

Unit information

• Voltage — 24
• Family type — SD7H15

Physical information

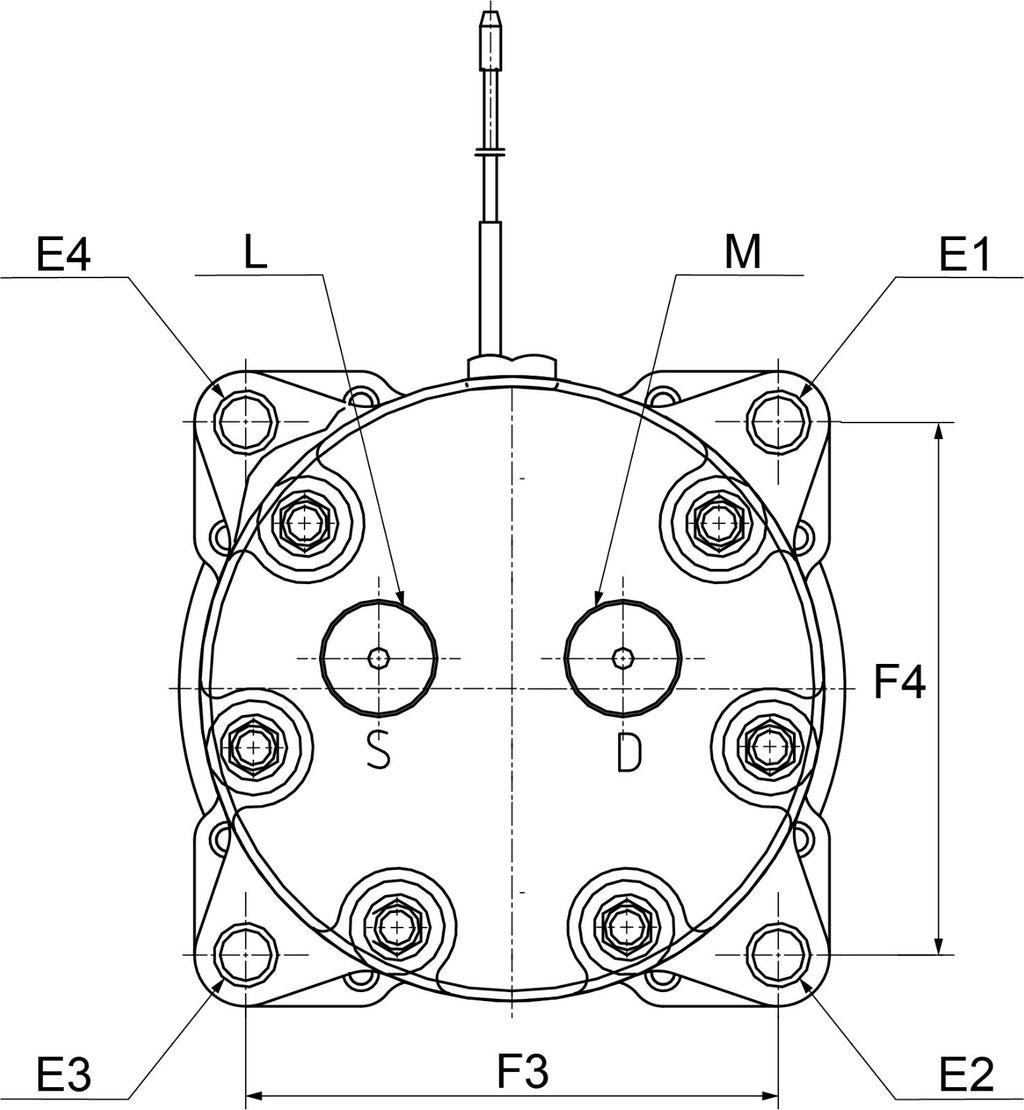

• F — Dist. between holes 1 — 104.00
• F — Dist. between holes 2 — 104.00
• F — Dist. between holes 3 — 104.00
• F — Dist. between holes 4 — 104.00

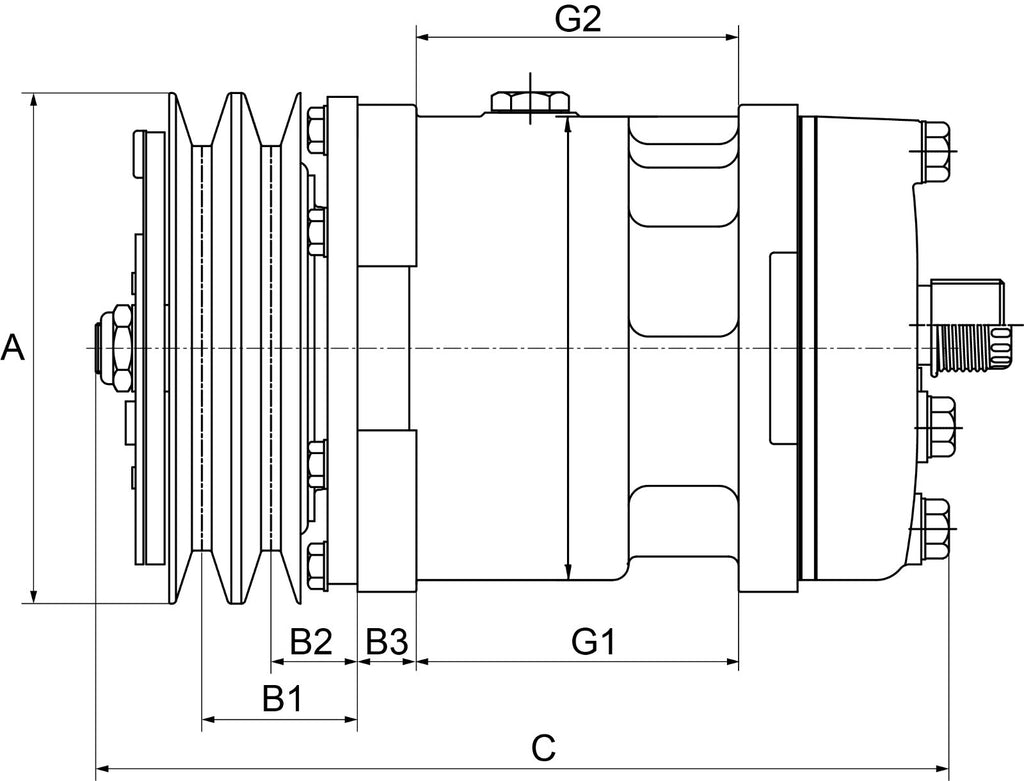

• G1 — Dist. between mount. bracket/hole — 83.30
• G2 — Dist. between mount. bracket/hole 2 — 83.30
• G3 — Dist. between mount. bracket/hole 3 — 83.30
• G4 — Dist. between mount. bracket/hole 4 — 83.30
• L — Position — 60
• M — Position 2 — 45
• Rear Cover Type — WZ
• C — Length mm — 227.00
• B3 — Bracket thickness B3 — 14.40
• L — Inlet — 19.80
• M — Outlet — 16.60

Pulley information

• B1 — Pulley Dist. B1 — 39.50
• B2 — Pulley Dist. B2 — 38.00
• Pulley Grooves — 2
• Pulley type — DP
• A — Pulley OD mm — 132.00

Part number Cross Reference

This compressor replaces any compressor with following part numbers.

If your part number is not listed below please message me for an instant response.

• 11104419 — VOLVO
• 14506862 — VOLVO
• 14649606 — VOLVO
• 15082742 — VOLVO
• 32469 — NRF
• 351119231 — HELLA
• 6035 — SANDEN
• 699471 — VALEO
• 8045 — SANDEN
• 8152 — SANDEN
• 8243 — SANDEN
• ACP581 — LUCAS
• sd7h15-8045 — SANDEN
• SD7H158152 — SANDEN
• SD7H158243 — MASSEY FERGUSON
• TSP0155827 — DELPHI
